QuadCore KSD1000RW Wall Panel
- Wall Panels

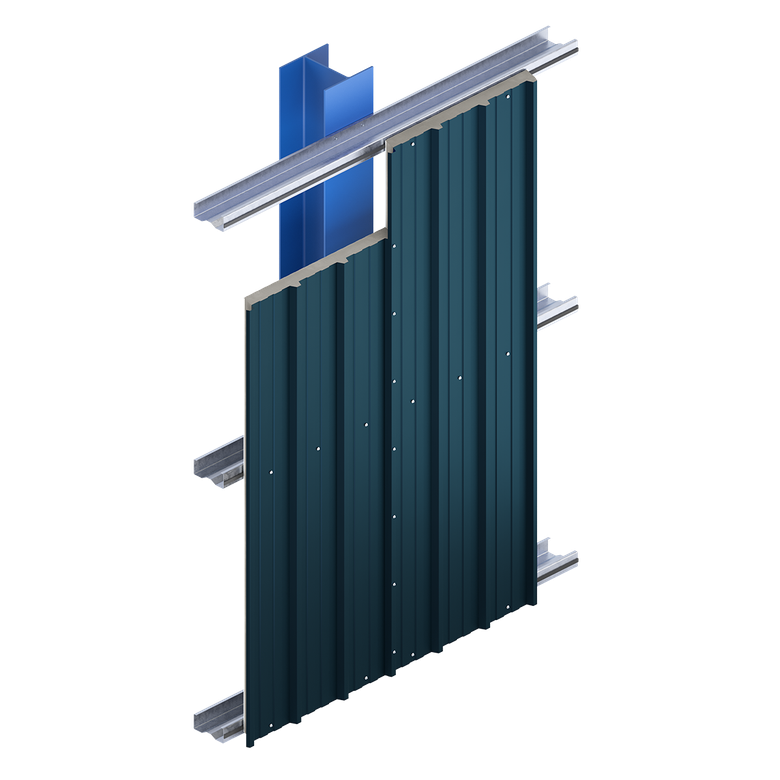

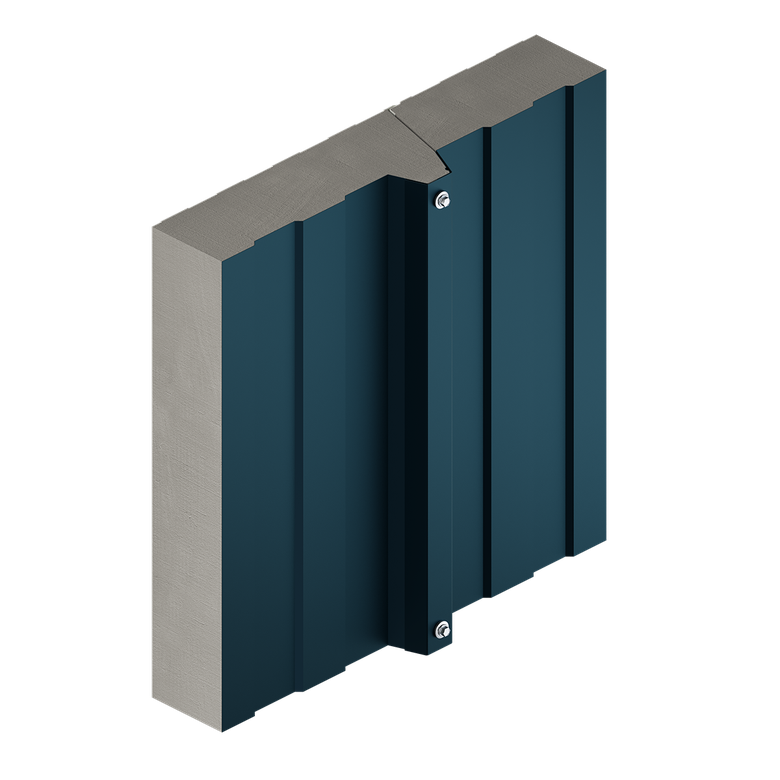

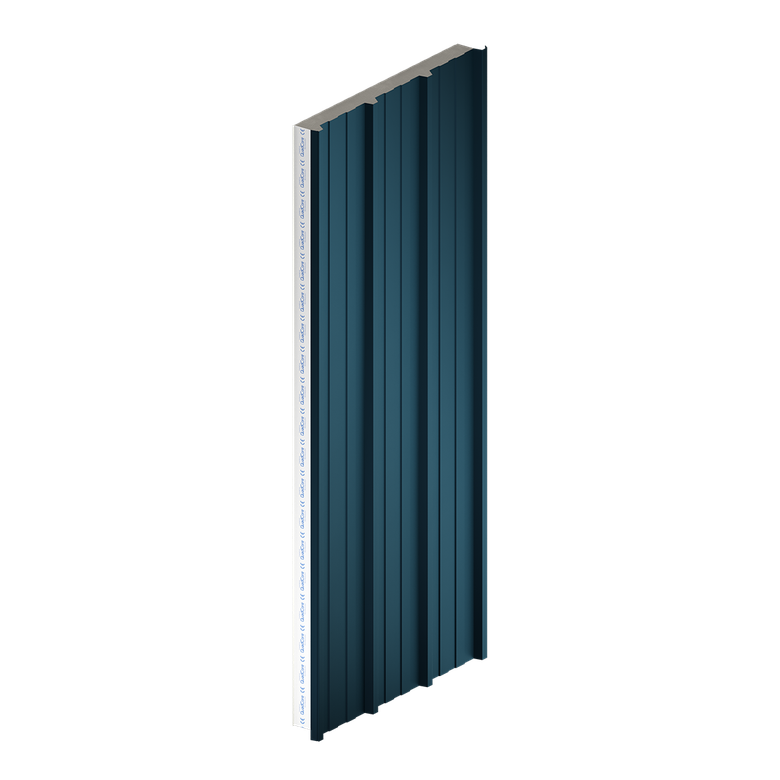

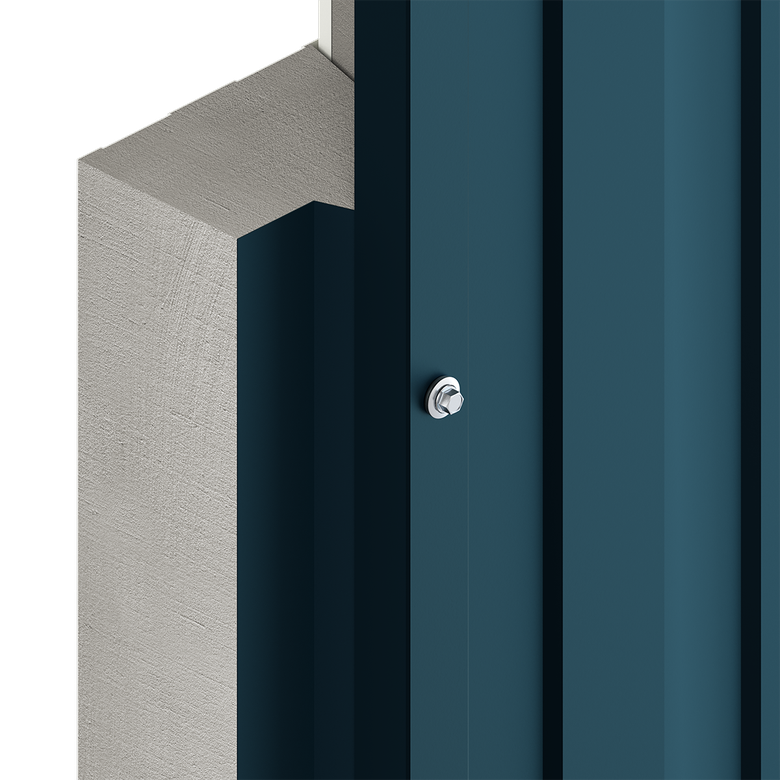

QuadCore KSD1000RW Wall Panel is a through-fix and trapezoidal profiled panel with a high performance QuadCore insulation core. The panel is available in 1000 mm width.
- QuadCore® Technology insulation core.
- Thermal transmittance for a 140 mm panel*: U-value = 0.34 W/m²·K (R-value equivalent of 7,95 m2K/W).
- Reaction to fire up to B-s2, d0 in accordance with EN 13501:1:2007+A1:2009.
Standard External Colors
- R9006
- R9010
- R9002
- R7035
- R1015
- R6021
Standard Internal Colors
- R9010
- R9002
- R9003

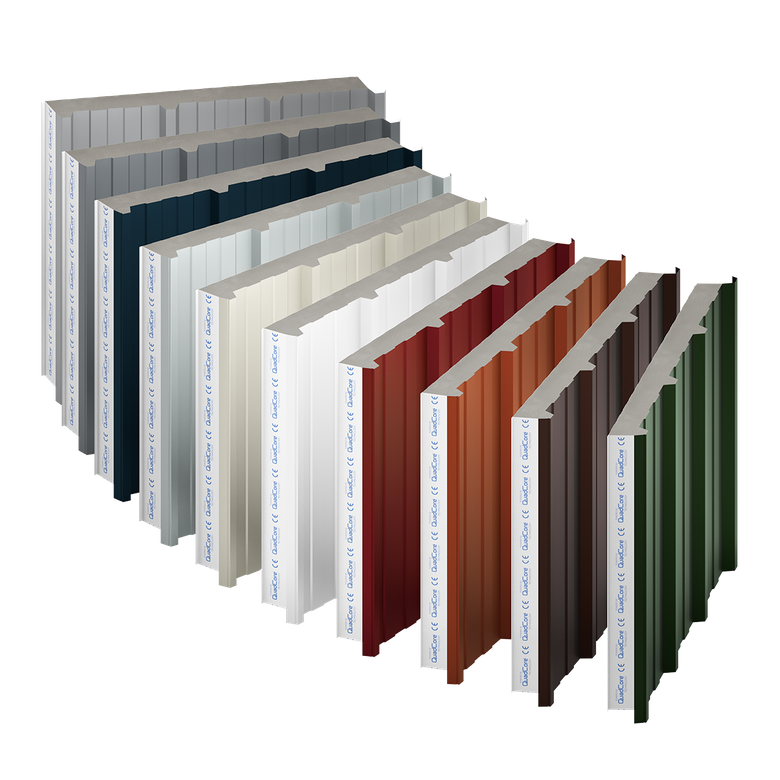

A diverse array of external colour choices is at your disposal, featuring a broad spectrum of finishes such as metallic, matte, and solid. Please contact Kingspan for advice on colour selection for your project.
Technical Information
| Core Thickness [mm] | Airborne Sound Insulation Rw(C;Ctr) |
|---|---|
| 40 | NPD |
| 50 | NPD |
| 60 | NPD |
| 70 | NPD |
| 80 | NPD |
| 100 | NPD |
| 120 | NPD |
