Wall Panels
KSD1000RW Wall Panel
- Wall Panels

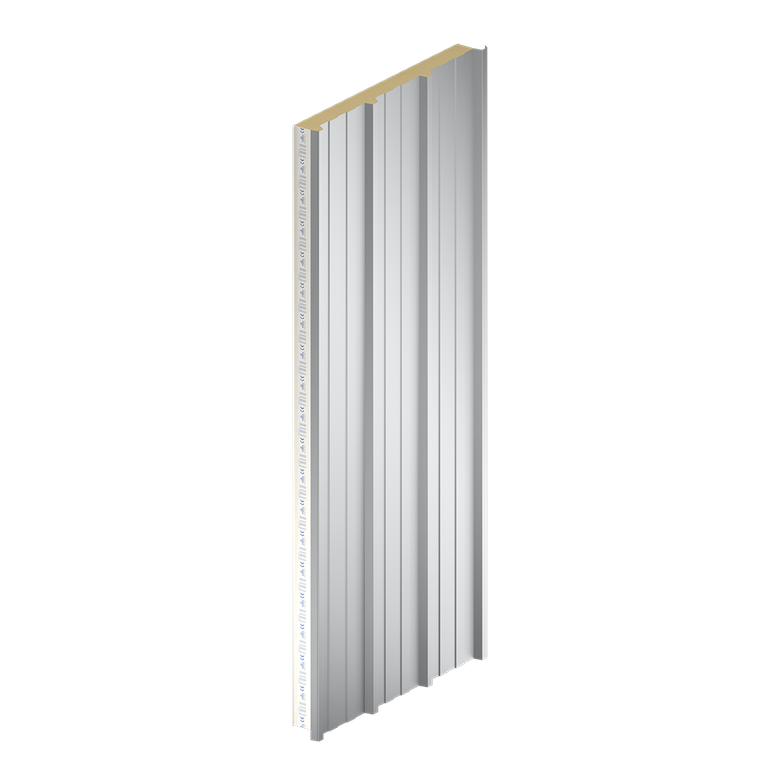

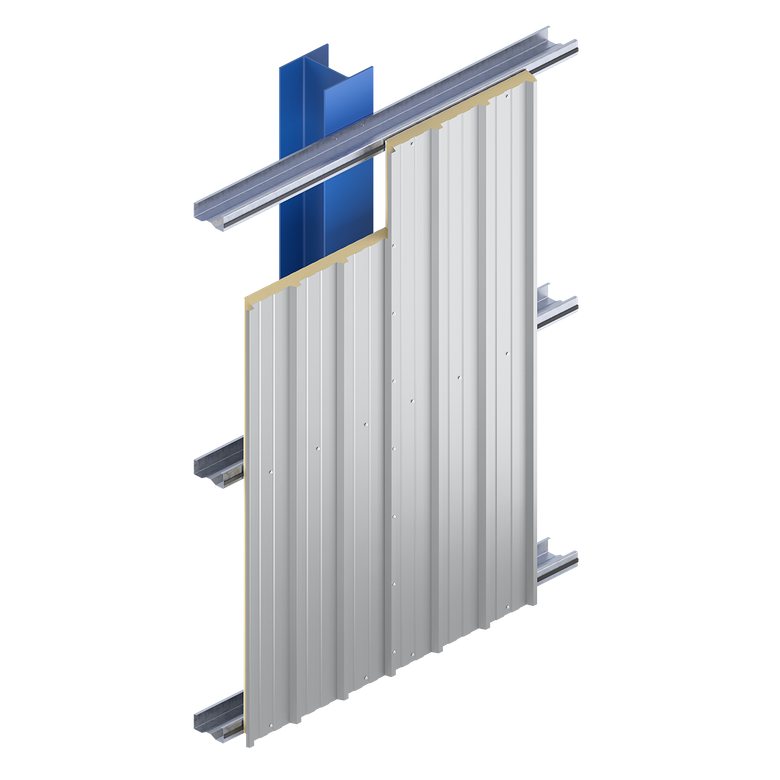

KSD1000RW Wall Panel is a through-fix wall panel. The panel is available in 1000 mm width. It offers design freedom and can be installed both vertically and horizontally, providing versatile installation options.
- Polyisocyanurate (IPN) insulation core.
- Thermal transmittance for a 140 mm panel*: U-value = 0.38 (R-value equivalent of 7,17 m2K/W).

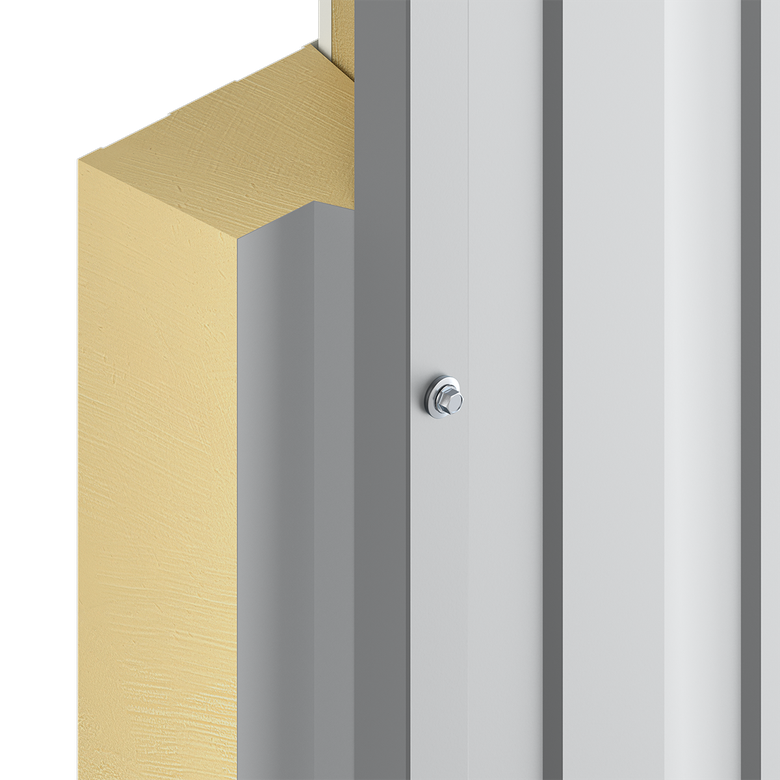

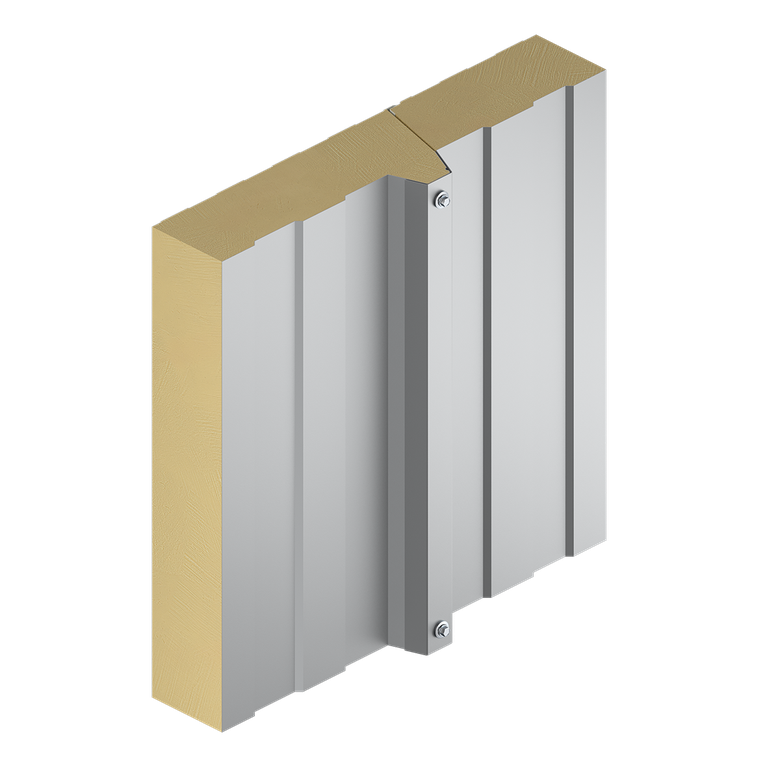

- Panel joint: Through fix .
Standard External Colors
- R9006
- R9010
- R9002
- R7035
- R1015
- R9003
Standard Internal Colors
- R9002
- R5010
- R9003

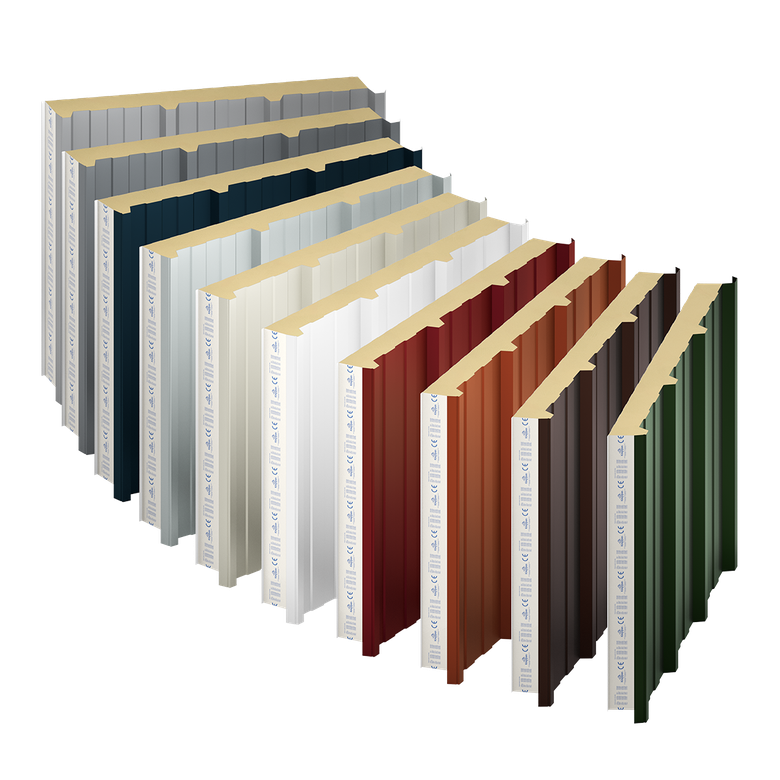

A diverse array of external colour choices is at your disposal, featuring a broad spectrum of finishes such as metallic, matte, and solid. Please contact Kingspan for advice on colour selection for your project.
Technical Information
| Core Thickness [mm] | Airborne Sound Insulation Rw(C;Ctr) |
|---|---|
| 40 | NPD |
| 50 | NPD |
| 60 | NPD |
| 70 | NPD |
| 80 | NPD |
| 100 | NPD |
| 120 | NPD |
Documents & Downloads
All technical documents, BIM models and certificates in one place
