KS AWP QuadCore® Architectural Wall Panel
- Insulated wall panels

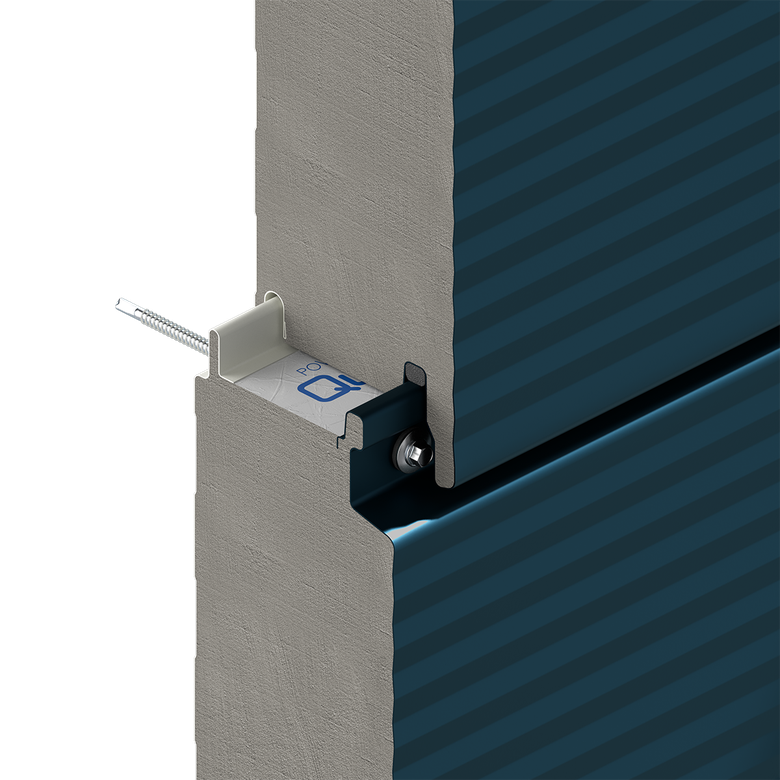

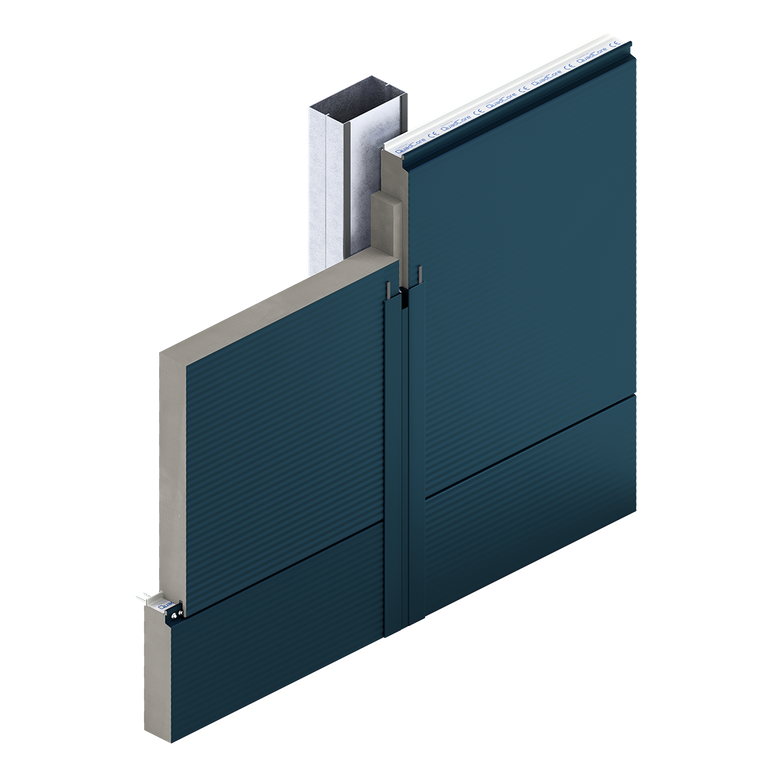

KS AWP QuadCore® Architectural Wall Panel is a hidden fixing panel system that can be used primarily as the exterior facade of buildings. QuadCore® Technology insulation is characterized by high thermal parformance.

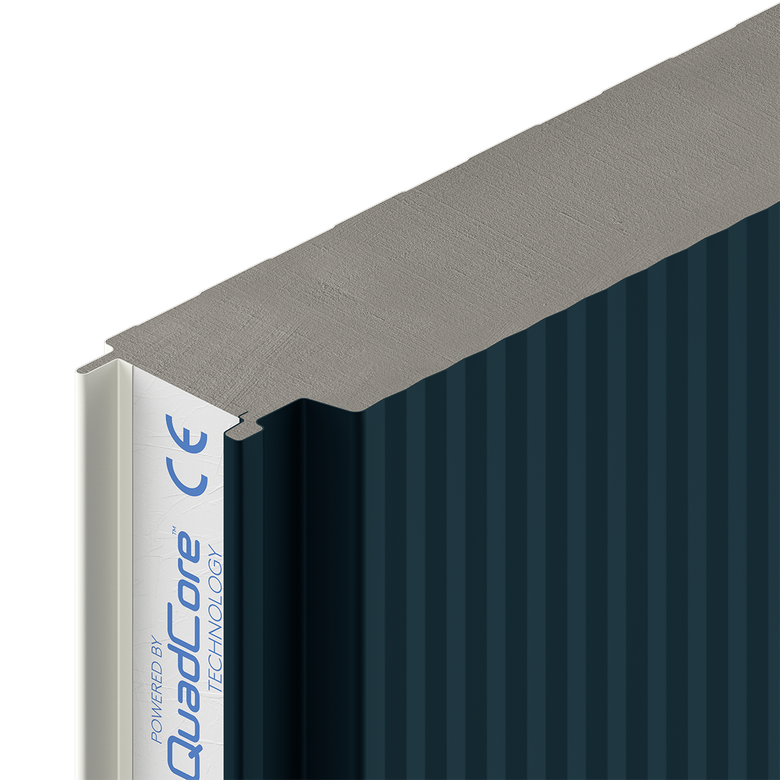

- QuadCore® Technology insulation core
- Thermal transmittance for a 170 mm panel: U-value = 0.019 W/m·K
- Reaction to fire: B-s2, d0 according to EN 13501-1:2018
Technical Information
KS AWP QuadCore® Architectural Wall Panel has been tested and approved to comply with EN 14509:2013.
| Core Thickness [mm] | Airborne Sound Insulation Rw(C;Ctr) |
|---|---|
| 80 | NPD |
| 100 | NPD |
| 120 | NPD |
| 150 | NPD |
| 170 | NPD |
