Insulated wall panels

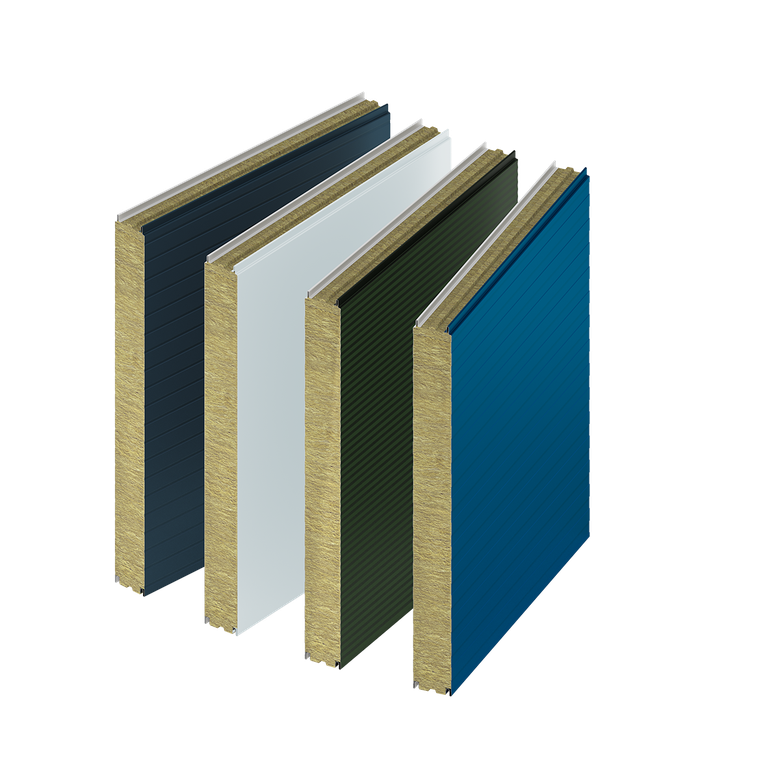

KS FR K-Roc® Wall Panel
- Insulated wall panels

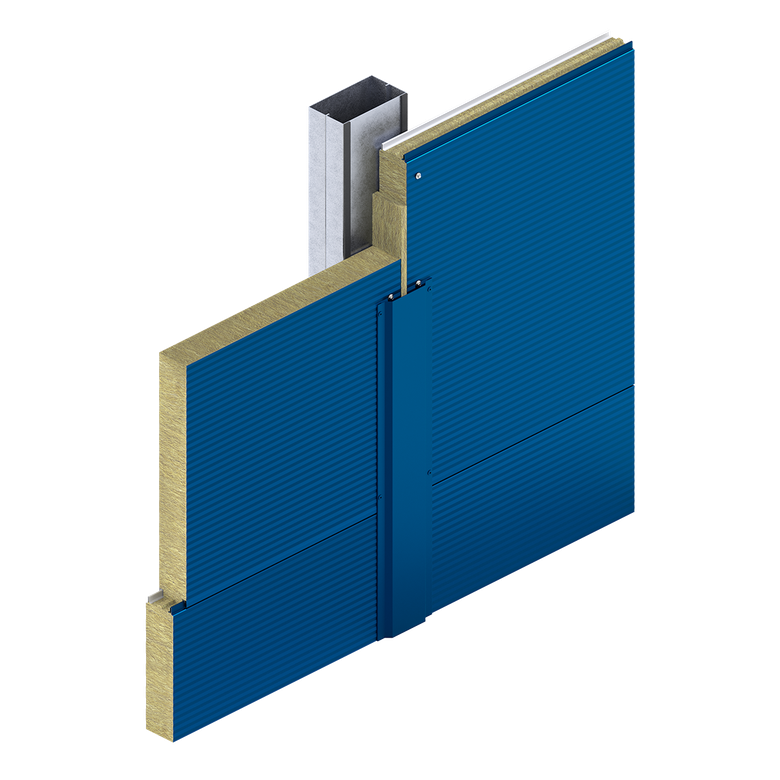

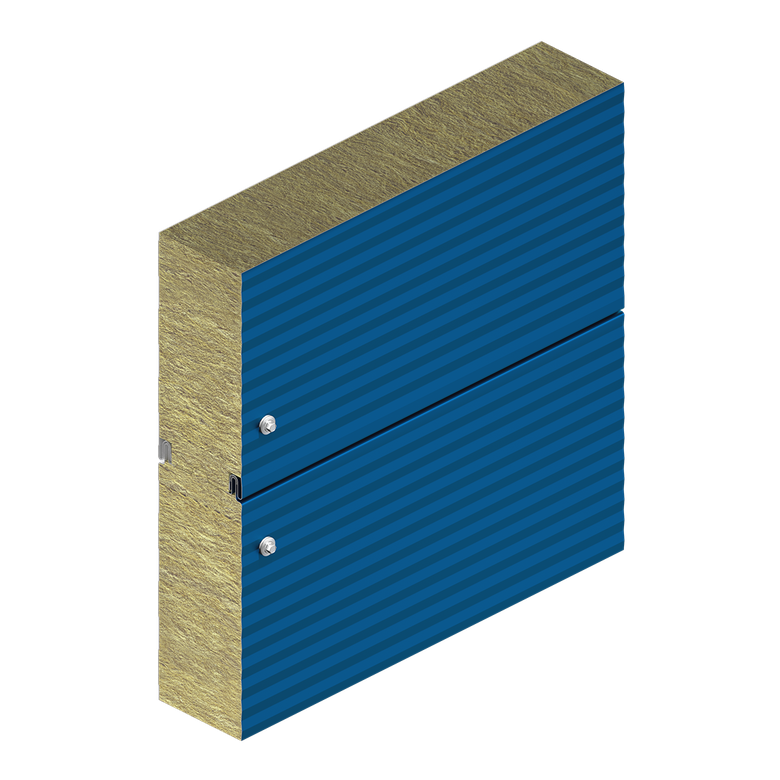

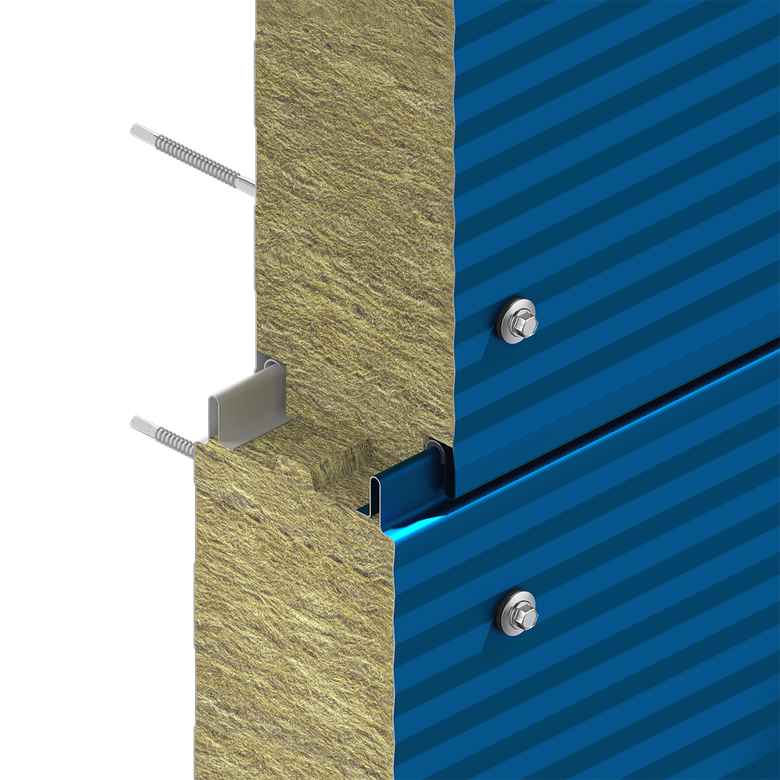

Panels with visible anchoring, designed for cladding perimeter and interior walls with horizontal or vertical installation and suspended ceilings.
- Wall panel suitable for buildings with a design internal temperature higher than 5°C

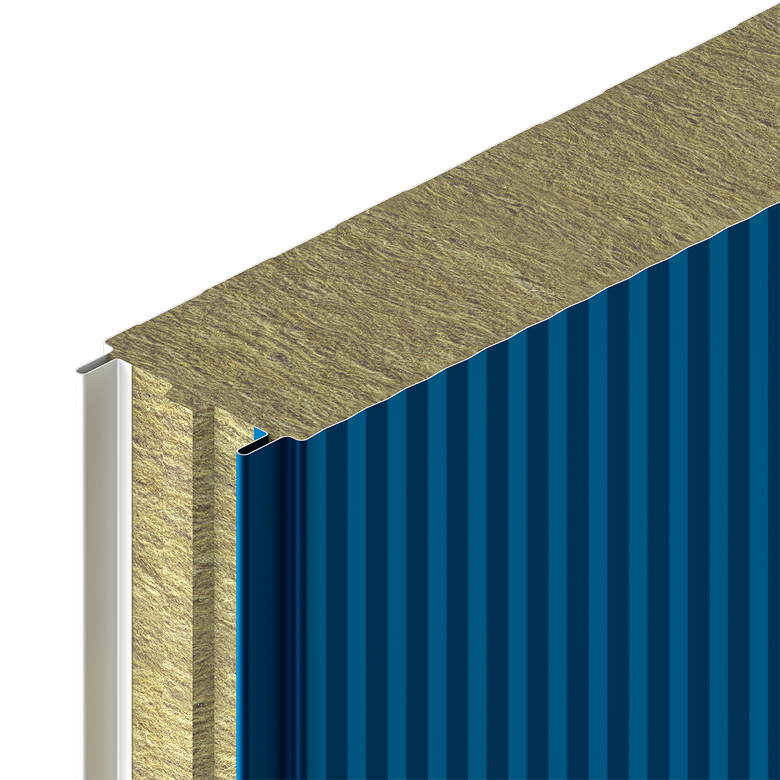

- K-Roc® mineral wool insulation core
- Thermal transmittance for a 150 mm panel: U-value = 0.28 W/m²·K
Technical Information
Kingspan insulated panels have been tested and approved to comply with EN 14509:2013.
| Core Thickness [mm] | Airborne Sound Insulation Rw(C;Ctr) |
|---|---|
| 60 | 31 (-1; -3) |
| 80 | 31 (-1; -3) |
| 100 | 32 (-1; -3) |
| 120 | 32 (-1; -3) |
| 140 | 32 (-1; -3) |
| 150 | 32 (-0; -3) |
