Insulated wall panels

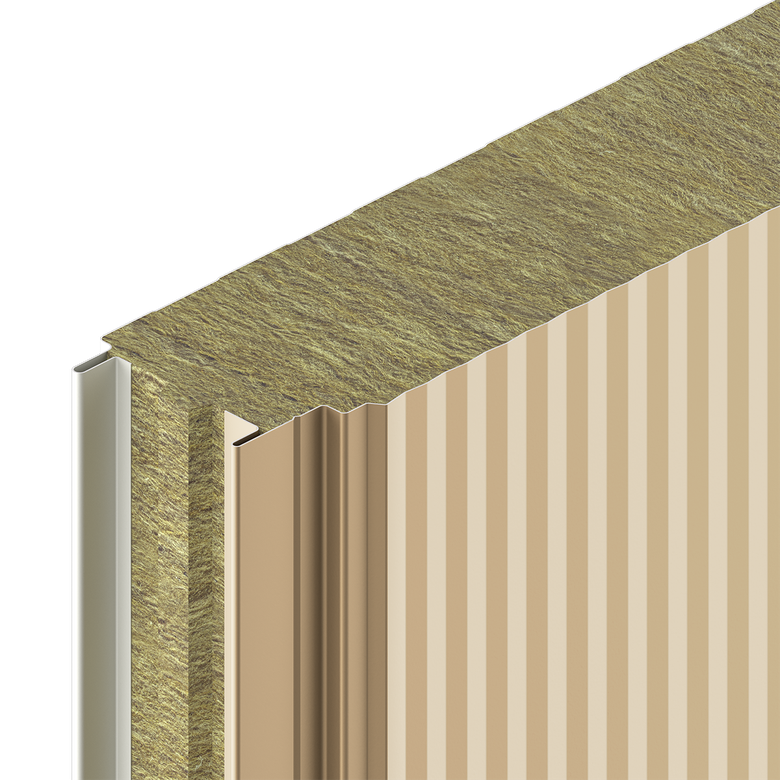

KS FH K-Roc® Wall Panel
- Insulated wall panels

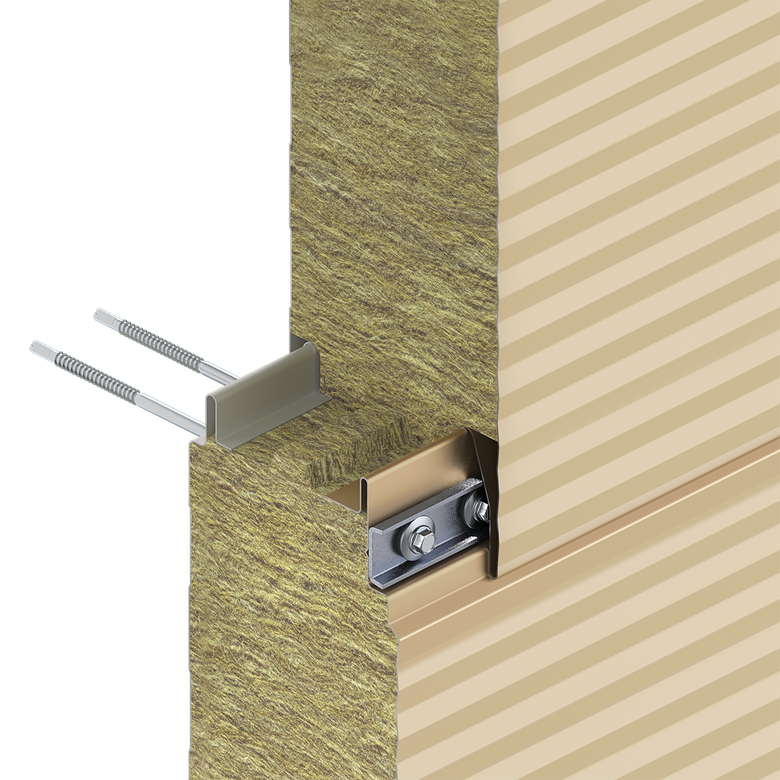

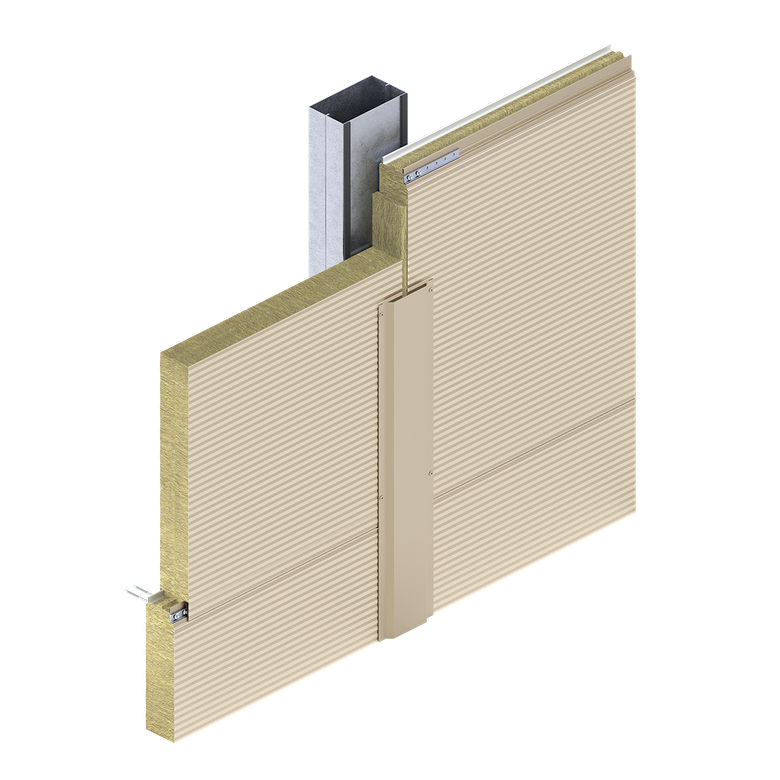

Panels with hidden anchoring, designed for cladding perimeter and interior walls with horizontal or vertical installation and suspended ceilings.
- Suitable for buildings with a design internal temperature higher than 5°C
- K-Roc® mineral wool insulation core
- Thermal transmittance for a 150 mm panel: U-value = 0.28 W/m²·K
Technical Information
Kingspan insulated panels have been tested and approved to comply with EN 14509:2013.
| Core Thickness [mm] | Airborne Sound Insulation Rw(C;Ctr) |
|---|---|
| 60 | 31 (-1; -3) |
| 80 | 31 (-1; -3) |
| 100 | 32 (-1; -3) |
| 120 | 32 (-1; -3) |
| 140 | 32 (-1; -3) |
| 150 | 33 (-1; -3) |
