Insulated wall panels

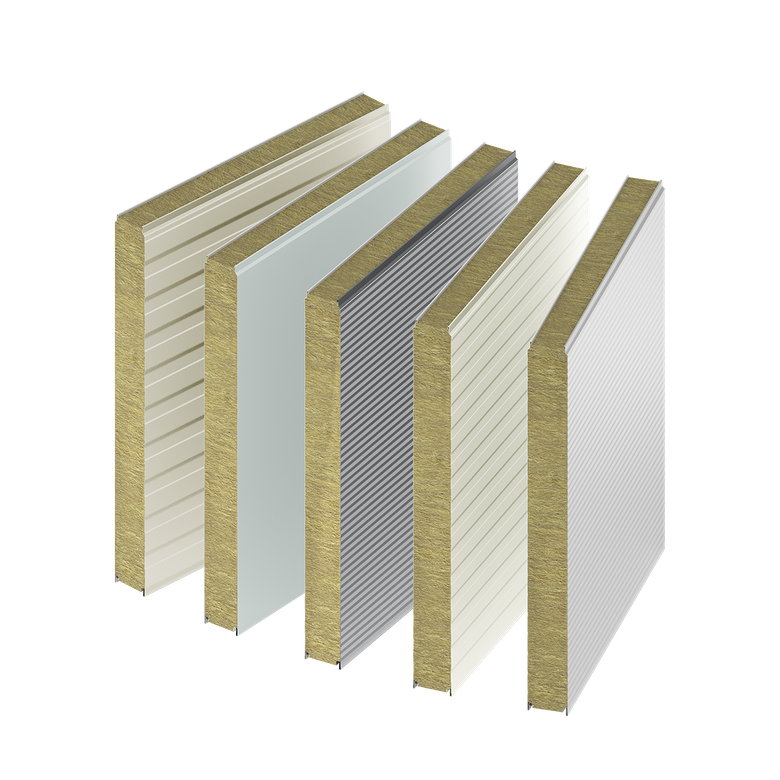

KS RF K-Roc® F Wall Panel
- Insulated wall panels

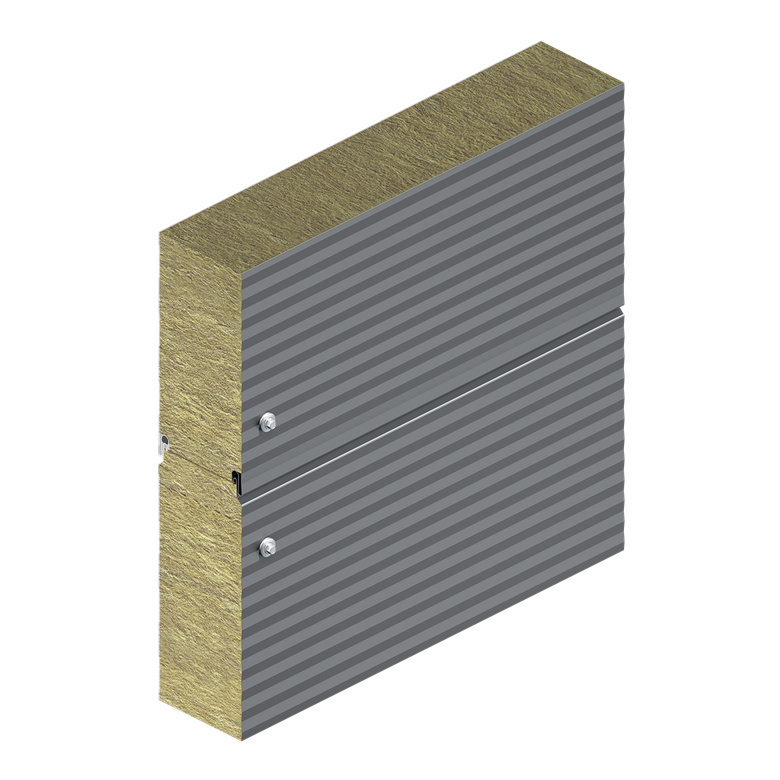

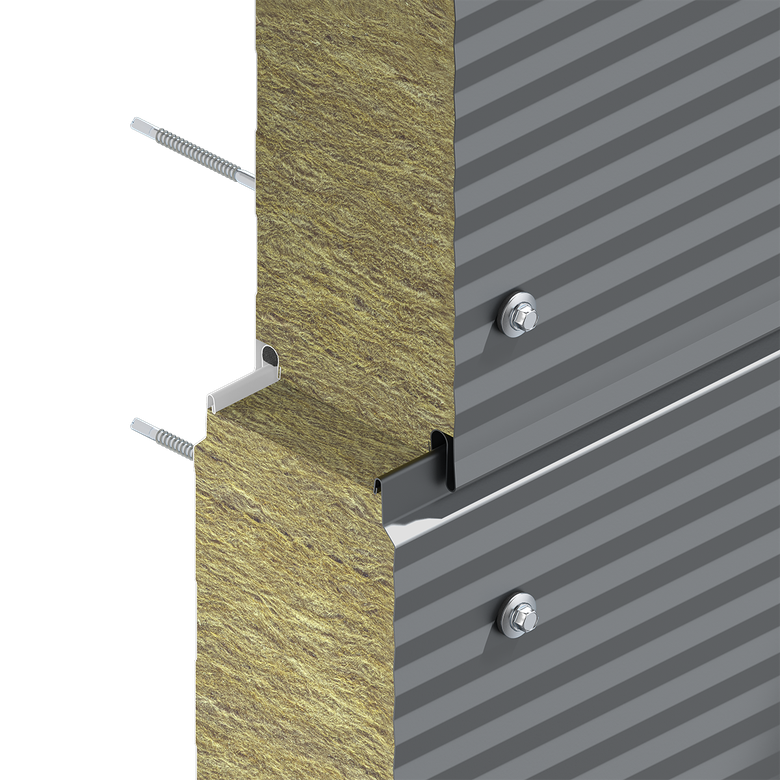

Wall sandwich panel with visible fixing, K-Roc® F insulation core and high fire performance.
- Product specific EPD available acc. to EN 15804:2012+A2:2019/AC:2021.

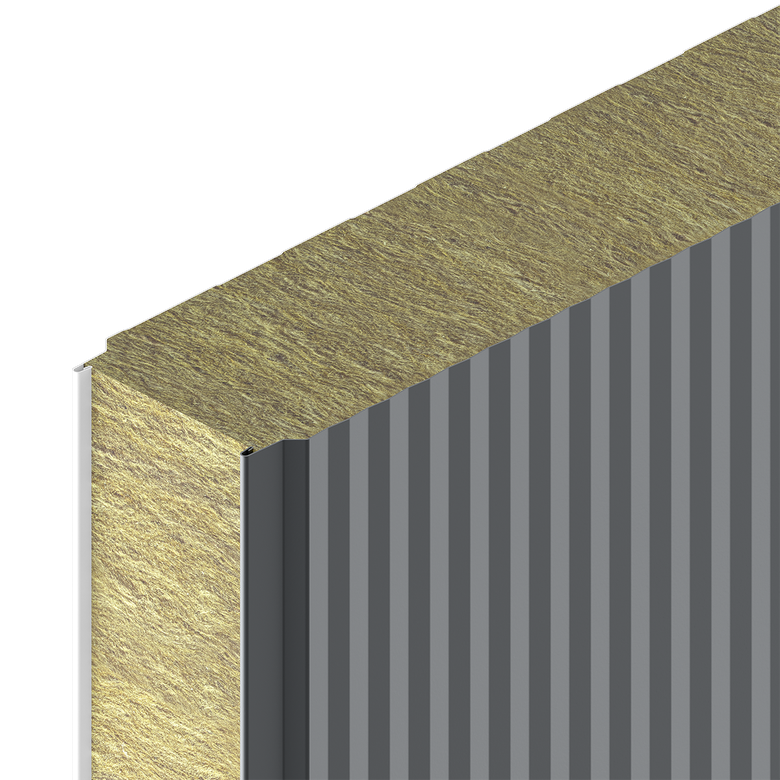

- K-Roc® insulation core
- U-value down to 0.18 W/m²·K for 240 mm
Technical Information
KS RF K-Roc® F Wall Panel has been tested and approved to comply with EN 14509:2013.
| Core Thickness [mm] | Airborne Sound Insulation Rw(C;Ctr) |
|---|---|
| 80 | 32 (-3; -3) |
| 100 | 31 (-2; -4) |
| 120 | 33 (-3; -3) |
| 150 | 32 (-2; -4) |
| 175 | 31 (-2; -4) |
| 200 | 31 (-2; -4) |
| 220 | 30 (-2; -4) |
| 240 | 30 (-2; -4) |
