KS RW Roof Panel
- Insulated roof panels

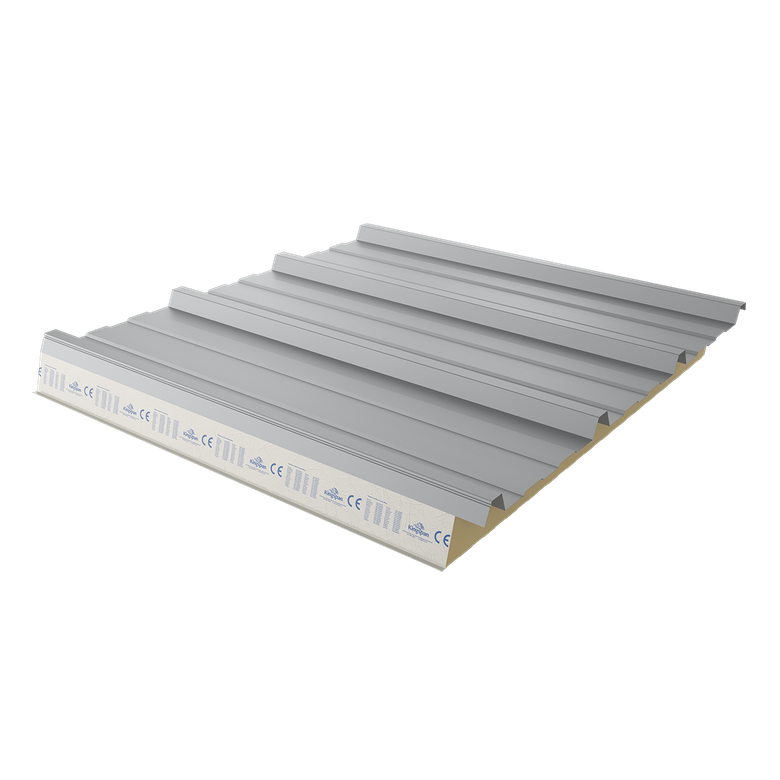

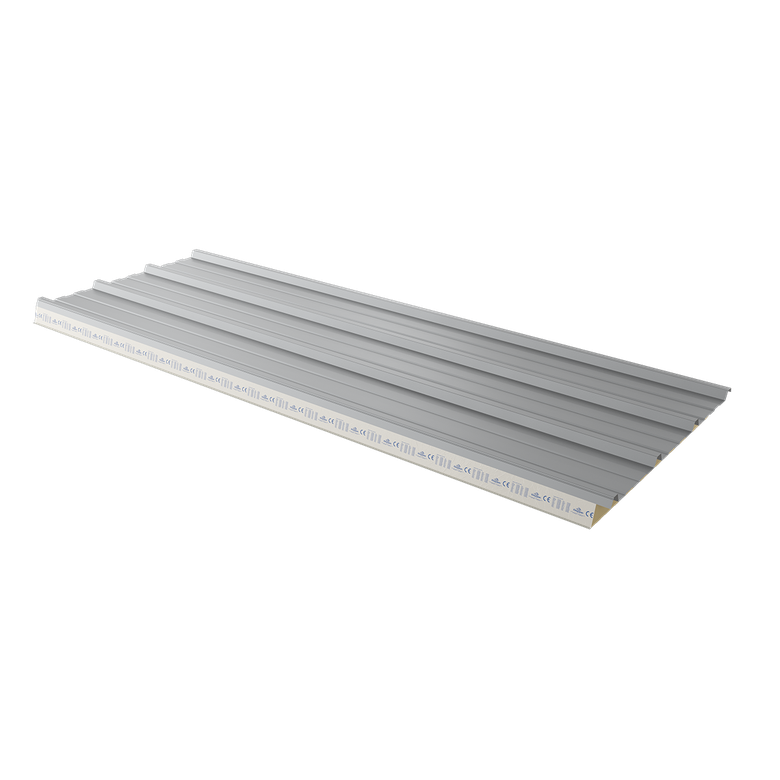

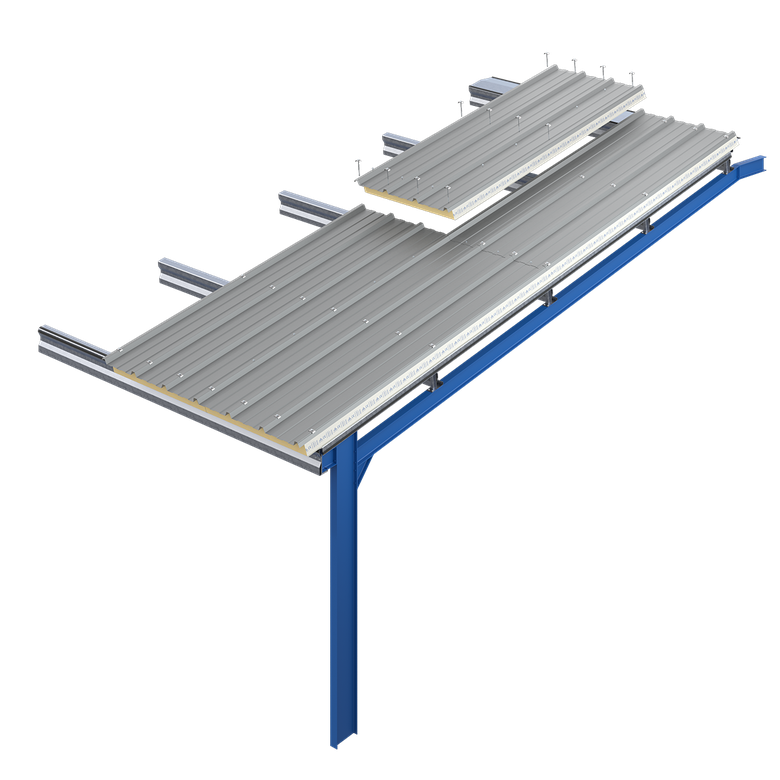

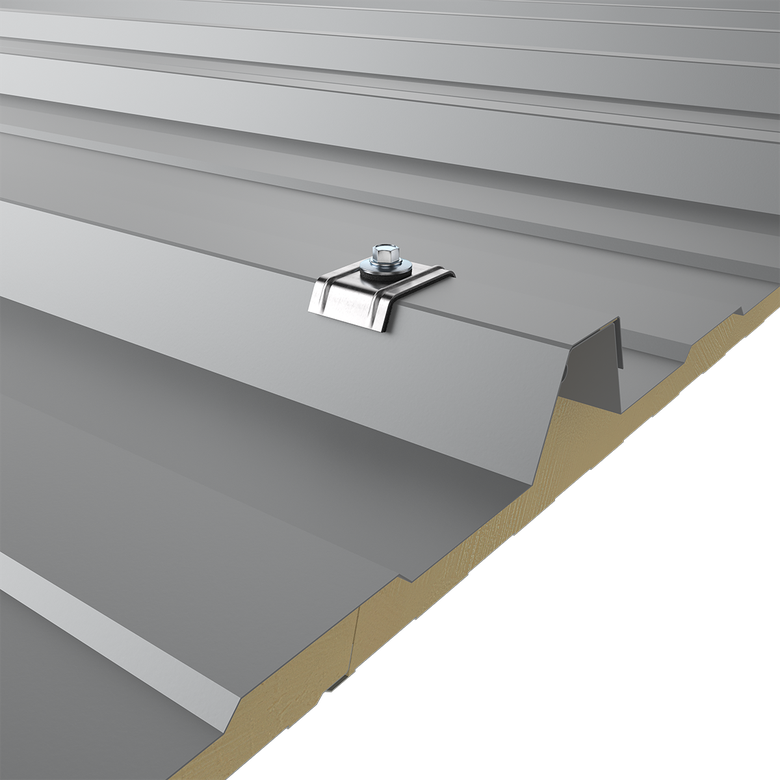

The KS RW Roof Panel is a sandwich panel system with a trapezoidal pattern, which is attached to the support elements placed every 1.5-3.0m with through-bolts. Its use is recommended in case of a roof slope of at least 4° (i.e. 7%).
- Polyisocyanurate (IPN) insulation core
- Thermal transmittance for a 100 mm panel: U-value = 0.220 W/m²·K
- Reaction to fire: B-s2, d0 according to EN 13501-1:2018
Technical Information
KS RW Roof Panel has been tested and approved to comply with EN 14509:2013.
| Core Thickness [mm] | Airborne Sound Insulation Rw(C;Ctr) |
|---|---|
| 50 | NPD |
| 60 | NPD |
| 80 | NPD |
| 100 | NPD |
| 120 | NPD |
| 160 | NPD |
