Insulated wall panels

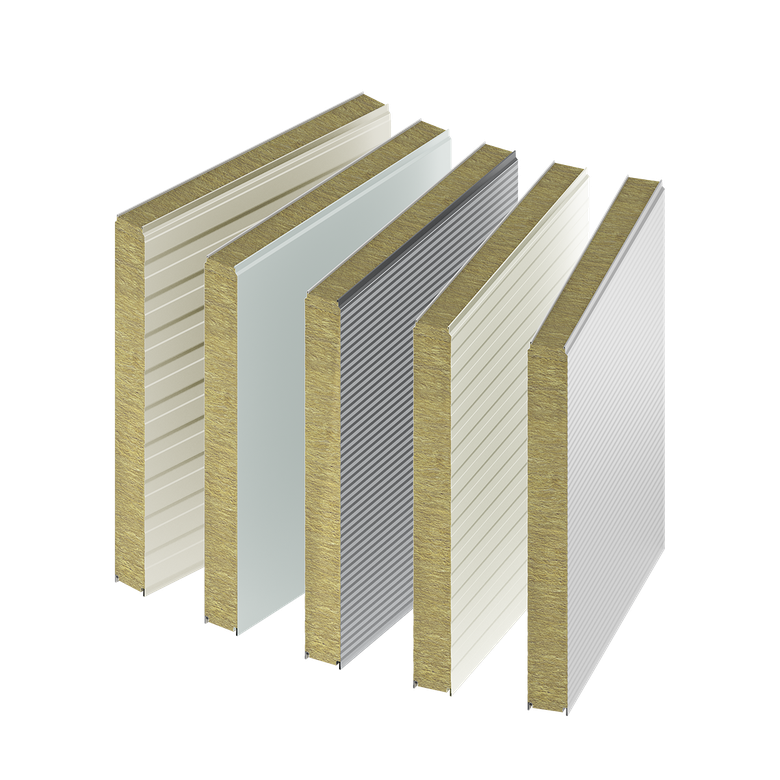

KS RF K-Roc® C Wall Panel
- Insulated wall panels

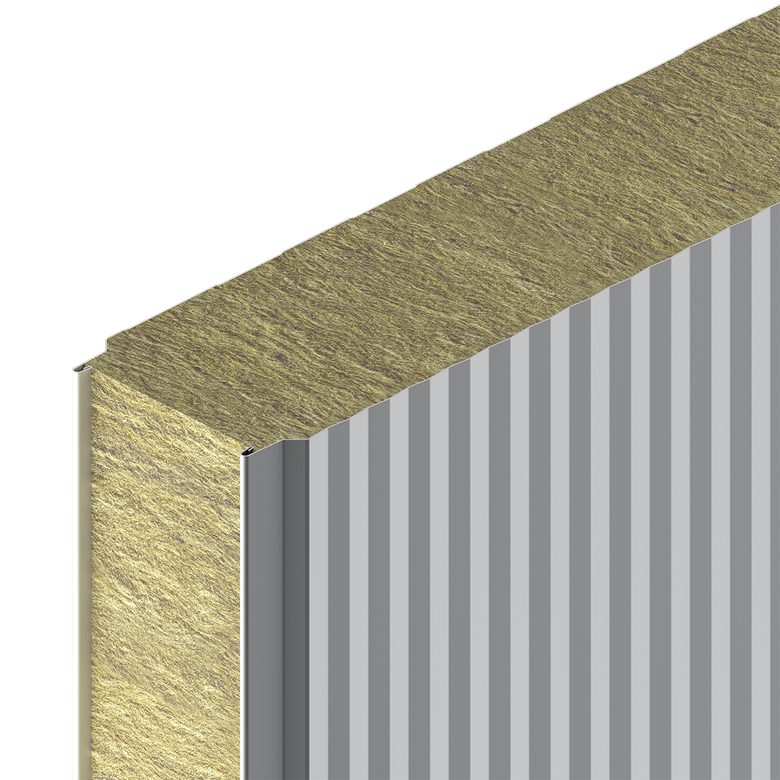

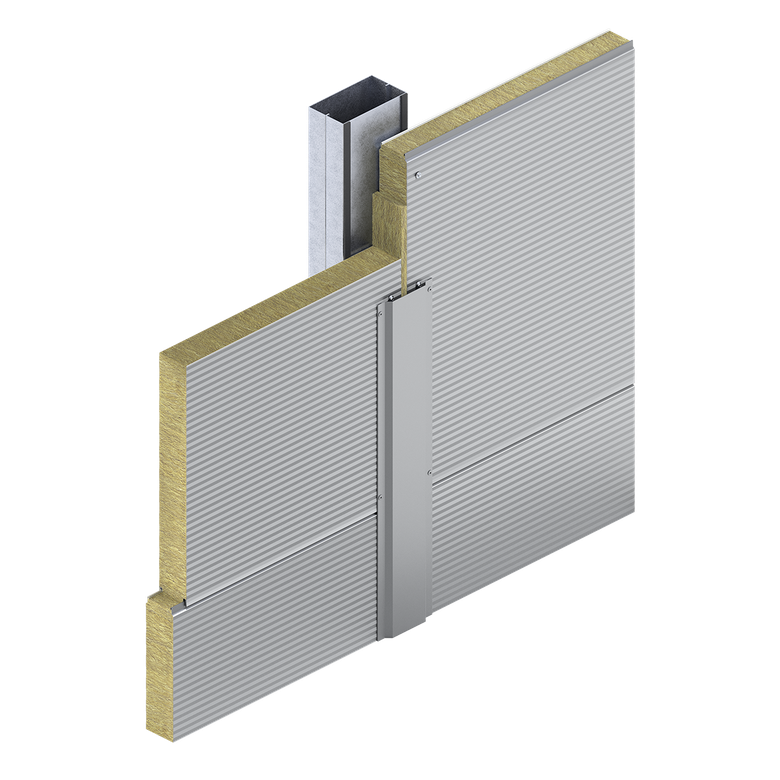

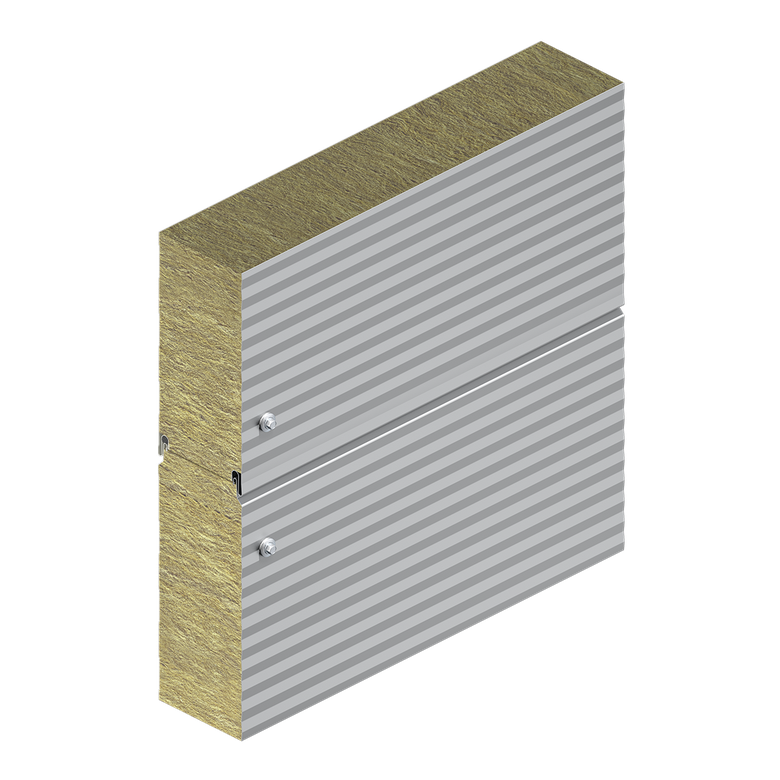

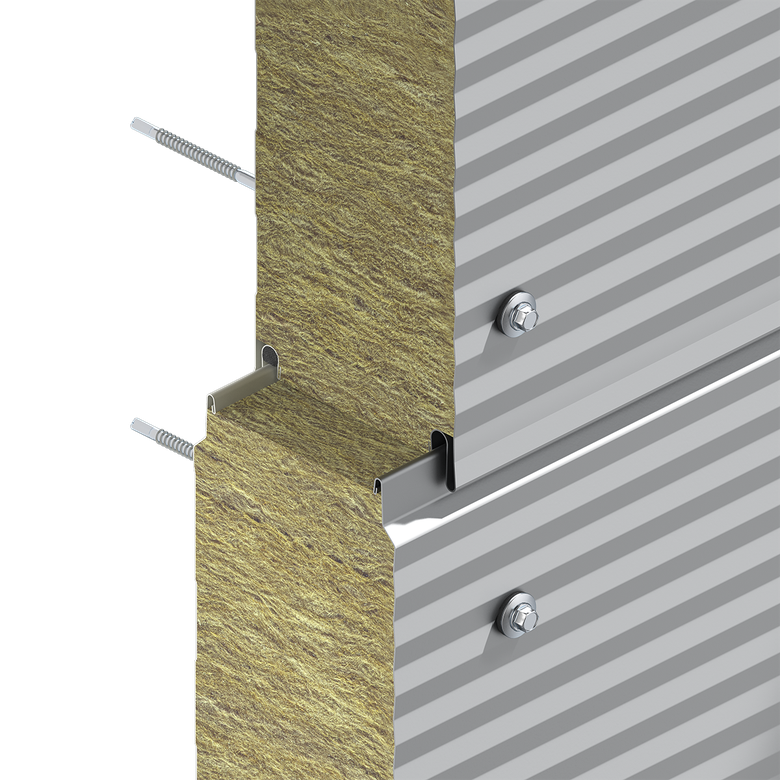

Wall sandwich panel with visible fixing, K-Roc® C insulation core that provides good thermal performance.
- Product specific EPD available acc. to EN 15804:2012+A2:2019/AC:2021
- K-Roc® insulation core
- U-value down to 0.16 W/m²·K for 240 mm
Technical Information
KS RF K-Roc® C Wall Panel has been tested and approved to comply with EN 14509:2013.
| Core Thickness [mm] | Airborne Sound Insulation Rw(C;Ctr) |
|---|---|
| 80 | 30 (-2; -4) |
| 100 | 30 (-2; -4) |
| 120 | 31 (-3; -5) |
| 150 | 30 (-2; -4) |
| 175 | 30 (-2; -4) |
| 200 | 30 (-2; -3) |
| 220 | 29 (-3; -5) |
| 240 | 29 (-3; -5) |
Documents & Downloads
All technical documents, BIM models and certificates in one place
