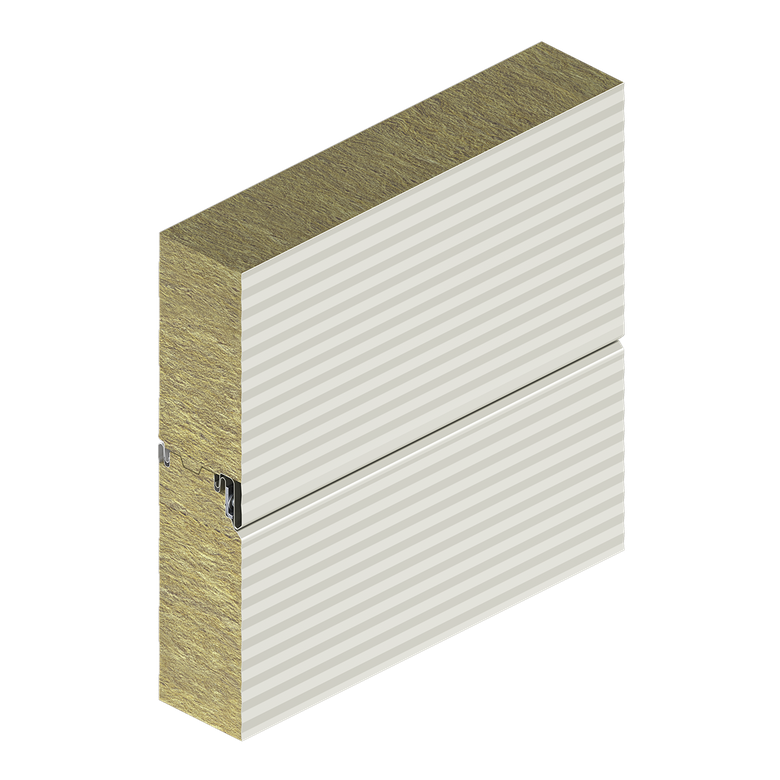

KS RH K-Roc® X Wall Panel
- Insulated wall panels

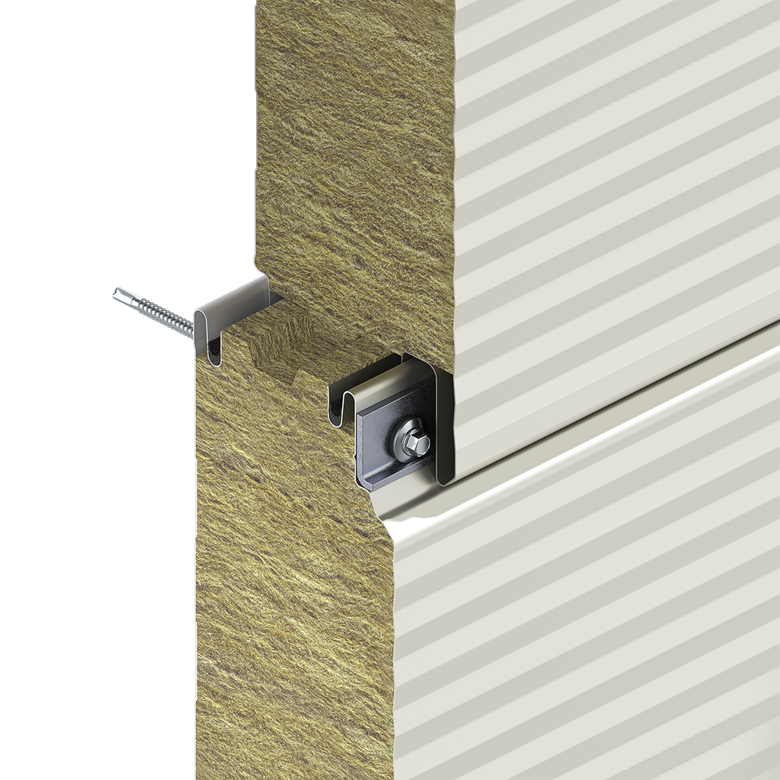

KS RH K-Roc® X Wall Panel has hidden fixing and a non-combustible K-Roc® mineral wool insulation core. With its fire resistance, it is suitable for installation at the border of a fire section or in places with a high fire protection risk.
- K-Roc® mineral wool insulation core
- Thermal transmittance for a 200 mm panel: U-value = 0.200 W/m²·K
- Reaction to fire: A2-s1, d0 according to EN 13501-1:2018
Technical Information
KS RH K-Roc® X Wall Panel has been tested and approved to comply with EN 14509:2013.
| Core Thickness [mm] | Airborne Sound Insulation Rw(C;Ctr) |
|---|---|
| 80 | 29 (-2; -4) |
| 100 | 30 (-2; -4) |
| 120 | 30 (-2; -4) |
| 150 | 30 (-2; -4) |
| 175 | 31 (-2; -4) |
| 200 | 31 (-3; -4) |
