Insulated wall panels
KS TL Wall Panel
- Insulated wall panels

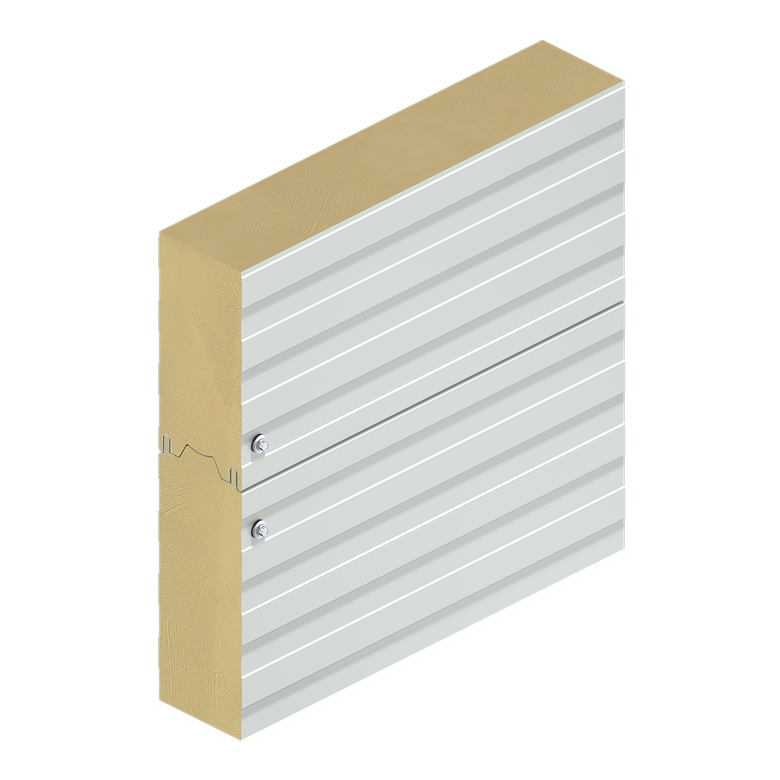

The KS TL Wall Panel is with visible fixing that can be placed both horizontally and vertically. The product can be used mainly as external facades and partitions of buildings, but also as suspended ceilings and simple coverings.
- Polyisocyanurate (IPN) insulation core
- Thermal transmittance for a 120 mm panel: U-value = 0.190 W/m²·K
- Reaction to fire: B-s2, d0 according to EN 13501-1:2018
Technical Information
KS TL Wall Panel has been tested and approved to comply with EN 14509:2013.
| Core Thickness [mm] | Airborne Sound Insulation Rw(C;Ctr) |
|---|---|
| 100 | NPD |
| 120 | NPD |
Documents & Downloads
All technical documents, BIM models and certificates in one place
